CNC Ready Benchtop Lathe

CNC High Capacity Bench Top Lathe Photo


SPECIFICATIONS:

  Standard HC
Swing over bed 3.50" 4.75"
Swing over carriage 1.75" 3.0"
Distance between centers 8.00" 17.00"
Cross Slide Travel 2.25" 4.25"
Tail stock spindle travel 1.50" 1.50"
Hole thru Spindle 0.405" 0.405"
Spindle Nose Thread 3/4"-16 TPI 3/4"-16 TPI
Tail Stock Spindle Taper #0 Morse #0 Morse
Spindle Speed Range 75-2800 RPM 75-2800 RPM
Spindle Nose Taper #1 Morse #1 Morse
Spindle Motor 1/2 HP DC 1/2 HP DC


Included Accessories:

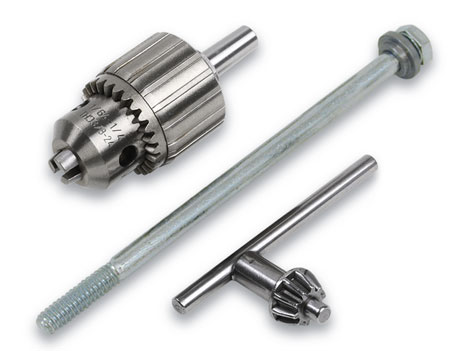

  • 3/8" Tailstock Chuck & Key
  • Face Plate
  • Dog & Screw
  • #0 and #1 Morse Centers
  • 5/32" and 3/32" Hex Keys
  • Tool Post (Rocker style tool post with extended lathe)

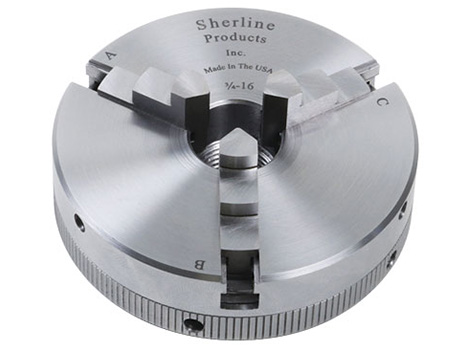

  • 2.5" OD 3 Jaw Chuck (3.125"OD Chuck with extended lathe)

Product

Order #

Price

Order

Benchtop Lathe

880-0000-003

$1,050

Benchtop Lathe (Extended)

870-4400-000

$1,260



Lathe Accessories


Quick Change Tooling

Quick Change Tooling Set Photo
The Quick Change Tool Set allows precise and highly repeatable tool changes. Our own inhouse designed system includes the tool post, tool holder and right hand cutting tool, a second tool holder and left hand cutting tool, and the parting tool holder and blade. One extra insert/blade is included with each. A standard Allen wrench is used intially to set the height and a simple thumb action is all that's needed to pop tools in and out. Finally a quick change tool system that's really easy to use!



Product
Order #
Price
Order
Quick Change Tool Set
900-0095-100
$375


Quick Change External Threading Tool

Quick Change Threading Tool Photo

The Quick Change External Threading Tool is an optional threading tool block for use with the Quick Change cam-lock tool post. It includes a threading tool holder and three carbide inserts.





Product
Order #
Price
Order
Quick Change External Threading Tool

900-0095-200
$115

Quick Change Internal Threading Tool



Internal Threading Tool

The Quick Change Internal Threading Tool is an optional threading tool block for use with the Quick Change cam-lock tool post. Includes both Tool holder and cutting tool.





Product
Order #
Price
Order
QuickChange Internal Threading Tool
900-0095-300
$115


Quick Change Boring Tool



The Quick Change Boring Tool is an optional boring tool block for use with the Quick Change cam-lock tool post. Includes both Tool holder and cutting tool.





Product
Order #
Price
Order
Quickchange Boring Tool
900-0095-400
$115


Quick Change Riser Kit



The Quick Change Riser Kit allows you to work on larger pieces of material. It is an optional tool block for use with the Quick Change cam-lock tool post.





Product
Order #
Price
Order
QuickChange Riser Kit

900-0095-500
$48




**Click here for more tools and accessories.

Prices updated 05/25/2017
