The Bridgeport XY CNC retrofit kit includes the mechanical components needed to convert the X and Y axes of your manual Bridgeport, Jet, Enco or most any similar J-head type mill for CNC operation. All components are precision engineered. The kit includes (2) Size 42 motor mounting plates, (2) motor pulleys, (2) lead screw pulleys, (2) motor covers, (2) drive belts, and all required bolts, dowels, and spacers. For use with NEMA 42 size motors.(order separately).
|
|
|
|
|
|
|
|
|
|
CNC Bridgeport Knee Conversion Kit
|
|
The Bridgeport Knee CNC retrofit kit includes the mechanical components needed to automate the knee of a manual Bridgeport, Jet, Enco or most any similar type milling machine for motorized control. All components are precision engineered. Kit includes a size NEMA 42 motor mounting plate, motor pulleys, lead screw pulley, motor cover, drive belt, and all required bolts, dowels, and spacers. For use with NEMA 42 size motors.(order separately).
|
|
|
|
|
|
|
999-1000-102
|
$395
|
|
NEW Improved Design!
|
|
The Bridgeport CNC Quill retrofit kit includes the mechanical components needed to convert the Z axis of your manual Bridgeport or Enco mill for CNC operation. All components are precision engineered and include the quill feed drive frame w/ size 42 motor mount, the ball screw and ball nut assembly, the motor and ball screw pulleys, the motor cover, and all needed bolts, dowels, and spacers. For use with NEMA 34 size motor (order separately).
|
|
|
|
|
|
|
|
|
|
High Performance Ballscrew Kit
Upgrade your Bridgeport/Enco or other mill with this precision-rolled ballscrew kit. The screw and nut assemblies
are made of hardened steel for durability and long life. This ballscrew kit
will provide a load life expectancy of 50 million inches of travel at an operating
load of 400 pounds. The many advantages in this design over other products on
the market include:
• accuracy of +/-.003" per foot
• Preloaded Ball Nuts- Each ball nut is preloaded to eliminate lost motion. This system stiffness provides faster response from a control command. This added stiffness also allows heavier cuts and climb milling thus increasing productivity. The preload is adjustable. This feature permits readjustment for wear and reduces the need for repair or future replacement.
• Brush-Type Wipers: Brush-type wipers, at the ends of each preloaded ball nut assembly, prevent entry of dirt and metal chips
• Easy-Access Lubrication:
Lubrication of ball nuts made easy through 5/32" holes in the flanges. These
holes provide for attachment of existing lube tubing. Available lengths: X axis:
36", 42", 48" Y axis: 9", 12"
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CNC Rack-Mount Control Systems for Full-Size Machines
These are complete pre-engineered packages to automate your full-size Bridgeport
, Enco, or similar size machine. Just couple the motor shafts to your machine's
drive screws, plug in the cables, turn on the power, and install the software.
You can immediately jog the motors by selecting the jog menu or pressing ctrl-J. It's that easy!
SYSTEM INCLUDES:
|
|
|
|
|
|
2 axis Rack Mount System |
999-6200-102 |
$2,435 |
|
|
3 axis Rack Mount System |
999-6200-103 |
$2,991 |
|
|
4 axis Rack Mount System |
999-6200-104 |
$3,122 |
|
|
2 axis Rack Mount Microstep System |
999-6200-112 |
$2,463 |
|
|
3 axis Rack Mount Microstep System |
999-6200-113 |
$3,475
|
|
|
4 axis Rack Mount Microstep System |
999-6200-114 |
$3,595
|
|

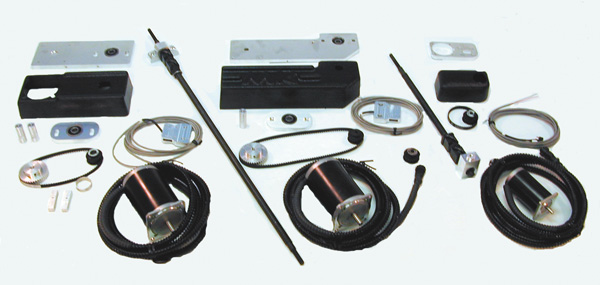

Rong Fu/Enco/Grizzly Stand Type CNC Mill Kit
|

|
|
(Instruction manuals, and fastening hardware are included but not shown in photo for clarity.) |
Offering impressive machining power, repeatability, and convenience, the CNC Express Conversion Kit is available as a complete retrofit kit ready to install on your own manual Rong Fu RF31,RF45, Enco, Grizzly or similar mill/drill. If you enjoy building projects, you can save money and have fun building your own CNC Express CNC milling machine. With this kit installed, you'll be able to machine complex shapes that would otherwise be impossible and you'll be able to repeat the process achieving perfect duplicate parts with very little effort and mostly unattended operation.
The custom made precision ballscrews on both the X and Y axes allow the typical conventional and the more desirable climb milling operations with accurate precision circular and contour cuts without the tedious setup of a rotary table.
The kit includes step-by-step, illustrated assembly instructions to make the whole process easy and fun.
The kit includes pre-wired stepper
motors, motor mounting plates with covers, ballscrews, pulleys, belts,
limit switches, and all mounting bolts. In addition to the above components,
this package also includes MillMaster
Pro for Windows G-code interpreter and graphical simulation software,

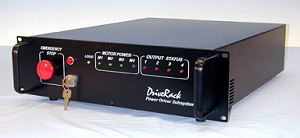

the DriveRack electronics
with built-in MN400 USB controller. All cabling and manuals are included...
all you supply is the base mill, a low cost computer, and your labor. Just bolt everything on, make a few adjustments
and you're up and running in less time than with any other system. Also for your
convenience, we offer a suitable base machine at a discounted price when purchased with this kit.
All accessories shown for the factory built CNC Express are also available for the Conversion Kit.
| KIT INCLUDES:
|
|
||||||||||
|
|

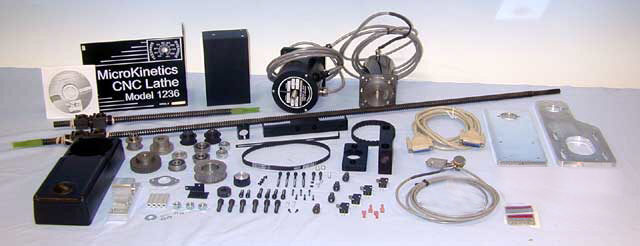

The CNC Lathe 1236 Conversion Kit is available as a complete retrofit kit ready to install on your own manual Enco, Birmingham, Jet, Nova, Grizzly, or similar 12" X 36" lathe. The kit offers ample machining power, repeatability, and convenience, With this kit installed, you'll be able to use single point cutting tools to eliminate the need for form tooling and the need for the oprator to actively perform all the operations by hand. You'll be able to call up a part program and machine perfect duplicate parts. The custom made precision ballscrews on both the X and Z axes allow precision taper and curved cuts without the setup of a compound slide. And with the electronic threading option you’ll be able to make infinitely variable internal, external, and tapered threads.
All
mechanical components are precision engineered and include step-by-step, illustrated
The kit includes pre-wired stepper
motors, motor mounting plates with covers, ballscrews, pulleys, belts,
limit switches, and all mounting bolts. In addition to the above components,
this package also includes TurnMaster
Pro for Windows G-code interpreter and graphical simulation software, and the
DriveRack electronics
with built-in MN400 USB controller.
All cabling and manuals are included... all you supply is the basic 12" x 36" lathe and a suitable desktop or laptop computer. We also offer a suitable base lathe (if you don't
already have one) at a discounted price when purchased with this kit.
All accessories shown for the CNC Lathe 1236 are also available for the Conversion
Kit.
KIT INCLUDES:
|
|
|
|
|
|
|
|
999-1000-301 |
$4,295 |
|
|
|
999-1000-300 |
$3,995 |
|
|
||
 |
 |
 |
|
Easy
to Use Control Software
|
Advanced
Motion Control: USB & Bipolar
|
Mechanical
Parts, Motors, Cables, and Documnetation
|
|

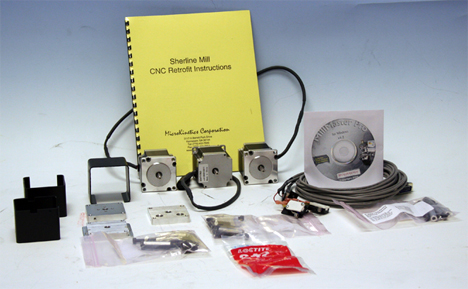

This CNC conversion kit is designed for the non CNC ready Sherline milling machines. The kit includes the mechanical components and motors needed to turn your manual Sherline mill into a working CNC machine! Now you can easily machine complex contours that would otherwise be impossible. This easy-to-install kit saves you valuable time and effort. All mechanical components are precision engineered and specifically designed for the Sherline machines and include step-by-step, illustrated assembly instructions. The kits include pre-wired stepper motors, motor mounting plates with covers, shaft couplings, and all necessary bolts. In addition to the above mechanical components, these packages also include MillMaster Pro for Windowscontrol software and what we believe is the industry's best electronics. For detailed specifications on the software, see the specific product info on MillMaster Pro for Windows. For a detailed review of the controller, see the MN400E and MightyDrive. For motor specifications, see the 23HT175 motor spec page. This kit is engineered to be the best. In short, you'll get the higher feed rates, program control of spindle on/off, and ability of future expansion for 4th axis. The component style enclosures offer jogging controls and operates from a legacy serial or USB ports and supports higher speeds and continuous contouring than is commonly available in the industry. |
| FEATURE | Included |
| G&M Code control | YES |
| Linear Interpolation | YES |
| Circular Interpolation | YES |
| Rapid Moves | 30 in/min |
| Rotary 4th axis support | YES |
| Remote Spindle ON/OFF | YES |
| Continuous Contouring | YES |
| External Control Panel | YES |
| Windows 2000/XP Support | YES |
|
|
|
Price |
Order
|
| Pro Mill Conversion Pkg | 999-6100-008 | $2,495 |
|
|
||
|
|
 |
|
Easy
to Use Control Software
|
Advanced
Motion Control: USB & Bipolar
|
Mechanical
Parts, Motors, Cables, and Documnetation
|
|

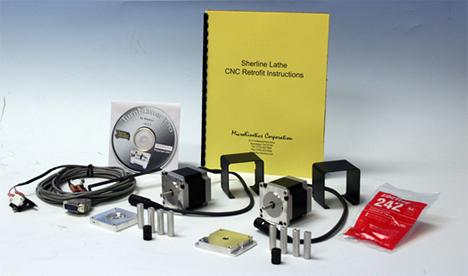

This CNC conversion kit is designed for the non CNC ready Sherline milling machines. The kit will turn your manual Sherline lathe into a working CNC machine! Now you can easily machine complex contours that would otherwise be impossible. This easy-to-install kit saves you valuable time and effort. All mechanical components are precision engineered and specifically designed for the Sherline machines and include step-by-step, illustrated assembly instructions. The kits include pre-wired stepper motors, motor mounting plates with covers, shaft couplings, and all necessary bolts. In addition to the above mechanical components, these packages also include TurnMaster Pro for Windows control software and what we believe is the industry's best electronics. For detailed specifications on the software, see the specific product info on TurnMaster Pro for Windows. For a detailed review of the controller, see the MN400E and MightyDrive. For motor specifications, see the 23HT175 motor spec page. Whether you are converting a lathe or a mill, these kits are offer you the best of the best. In short, the advanced package provides higher feed rates, program control of spindle on/off, and offers the ability to add electronic threading. The component style enclosure offer jogging controls and operates from a legacy serial or USB ports and supports higher speeds and continuous contouring than is commonly available in the industry. |
| FEATURE | Included |
| G&M Code control | YES |
| Linear Interpolation | YES |
| Circular Interpolation | YES |
| Threading Capable | YES |
| Rapid Moves | 30 in/min |
| Remote Spindle ON/OFF | YES |
| Continuous Contouring | YES |
| External Control Panel | YES |
| Windows 2000/XP Support | YES |
|
|
|
Price |
Order
|
| Pro Lathe Conversion Pkg | 999-6100-007 | $2,295 |
Prices updated 02/18/2013
